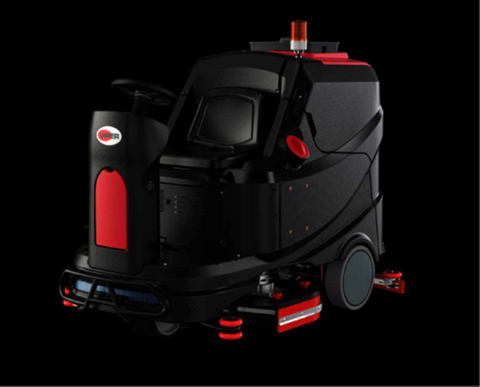

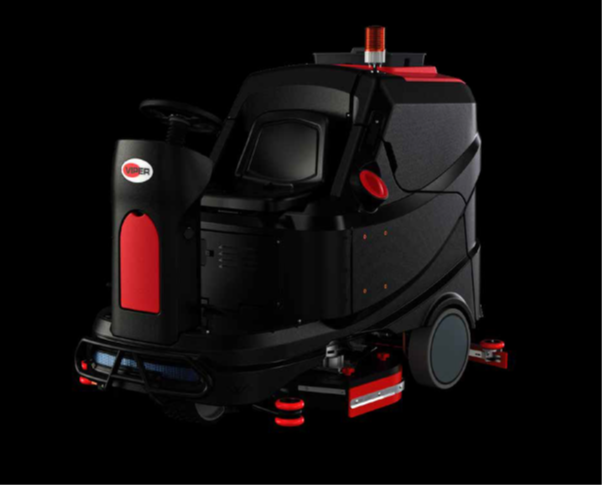

AS1050R LARGE RIDE ON SCRUBBER/DRYER
Description
Largest Viper ride-on scrubber dryer, suited for large-area cleaning of
up to 30,000m2
• Includes an intuitive dashboard, one-button start, and user-friendly menus for
operational settings for simple, easy operation
• ECO mode reduces consumption of energy and cleaning solution, with fewer
dumps and refills needed
• A robust chassis, with front and side bumpers, helps protect the machine from
damage and impacts, providing for longer machine life
• Automatic speed-reduction when turning, mechanical foot brake, emergency stop
switch, and ergonomic seating with safety switch
• One year commercial warranty
TECHNICAL SPECIFICATIONS
AS1050R
Part No. 50000594PA
Power Source Battery
Input Volts 36
Scrubbing Width mm 980
Brush/ Pad Diameter mm 508
Maximum Brush Pressure kg 90
Solution/ Recover Tank Capacity L 200/200
Squeegee Width mm 1100
Rated Power Watts 4200
Brush Motor Watts 1000 (x2)
Vacuum Motor Watts 600
Traction Motor Watts 1600
Productivity (theoretical/ actual) m²/hr 7840/-
Sound Pressure Level dB(A) 72
Dimensions mm 1930 x 1077 x 1350
Operating Weight kg 830
VF82056 Brush 510mm Polypropylene Black (x2)
5 Pad Holder 508mm (x2)
VR41633 Beacon Warning Light Kit
VS14744 Debris Tray Kit
VR41322 Squeegee Blade - Rubber, Front
VR41323 Squeegee Blade - Rubber, Rear
VR41206 Side Blades - Rubber (x2)
EV305A-A Battery 6 volt (x6)
IC1200-36 Delta Q Battery Charger
